Mâm cặp thủy lực 3 chấu xuyên lỗ N-200A AutoStrong - Đài Loan

Thông số kỹ thuật

Lỗ trục chính
(mm)

Hành trình pistong
(mm)

Hành trình chấu
(Trong Dia.)
(Mm)

Lực kéo tối đa(kgf)

Lực kẹp tối đa (kgf)

Áp suất
hoạt động tối đa (kgf / cm ² )

Tốc độ đối đa
(vòng / phút)

Trọng lượng
(kg)

Mômen
quán tính
I
(kg‧m ² )

Xi lanh phù hợp

Phù hợp với
chấu cứng

Phù hợp với
chấu mềm

Phạm vi Đường kính ngoài
(mm)

N-205A4

Ø33

10

5.4

1784

3671

28.5

7000

7.8

0.020

M1036

HJ05

HC05

Ø6-Ø135

N-205A5

Ø33

10

5.4

1784

3671

28.5

7000

9

0.023

M1036

HJ05

HC05

Ø6-Ø135

N-206A4

Ø45

12

5.5

2243

5812

28.5

6000

15.5

0.065

M1246

HJ06

HC06

Ø15-Ø169

N-206A5

Ø45

12

5.5

2243

5812

28.5

6000

14.7

0.062

M1246

HJ06

HC06

Ø15-Ø169

N-206A6

Ø45

12

5.5

2243

5812

28.5

6000

17.3

0.073

M1246

HJ06

HC06

Ø15-Ø169

N-208A5

Ø52

16

7.4

3558

9075

26.5

5000

25.8

0.190

M1552

HJ08

HC08

Ø20-Ø210

N-208A6

Ø52

16

7.4

3558

9075

26.5

5000

25

0.184

M1552

HJ08

HC08

Ø20-Ø210

N-208A8

Ø52

16

7.4

3558

9075

26.5

5000

29.3

0.217

M1552

HJ08

HC08

Ø20-Ø210

N-210A6

Ø75

19

8.8

4385

11319

27.5

4200

41

0.370

M1875

HJ10

HC10

Ø25-Ø254

N-210A8

Ø75

19

8.8

4385

11319

27.5

4200

38

0.340

M1875

HJ10

HC10

Ø25-Ø254

N-210A11

Ø75

19

8.8

4385

11319

27.5

4200

48.4

0.436

M1875

HJ10

HC10

Ø25-Ø254

N-212A6

Ø91

23

10.6

5812

14990

27.5

3300

62.5

0.809

M2091

HJ12

HC12

Ø30-Ø304

N-212A8

Ø91

23

10.6

5812

14990

27.5

3300

59.5

0.770

M2091

HJ12

HC12

Ø30-Ø304

N-212A11

Ø91

23

10.6

5812

14990

27.5

3300

69.9

0.912

M2091

HJ12

HC12

Ø30-Ø304

N-215A8

Ø117.5

23

10.6

7240

18355

23.5

2500

125

2.255

M2511S

HJ15

HC15

Ø50-Ø381

N-215A11

Ø117.5

23

10.6

7240

18355

23.5

2500

118

2.241

M2511S

HJ15

HC15

Ø50-Ø381

N-215A15

Ø117.5

23

10.6

7240

18355

23.5

2500

138

2.822

M2511S

HJ15

HC15

Ø50-Ø381

N-218A8

Ø117.5

23

10.6

7240

18355

23.5

2000

146

3.961

M2511S

HJ15

HC15

Ø50-Ø450

N-218A11

Ø117.5

23

10.6

7240

18355

23.5

2000

138

3.744

M2511S

HJ15

HC15

Ø50-Ø450

N-218A15

Ø117.5

23

10.6

7240

18355

23.5

2000

191

5.183

M2511S

HJ15

HC-15

Ø50-Ø450

N-220A11

Ø180

23

10.6

9177

23861

30.6

1800

215

7.355

ML2816

HJ24-1

HC24-1

Ø120-Ø510

N-220A15

Ø180

23

10.6

9177

23861

30.6

1800

202

6.910

ML2816

HJ24-1

HC24-1

Ø120-Ø510

N-224A11

Ø205

26

12

9177

23861

26.5

1400

332

18.199

ML3320

HJ24-1

HC24-1

Ø150-Ø610

N-224A15

Ø205

26

12

9177

23861

26.5

1400

317

17.376

ML3320

HJ24-1

HC24-1

Ø150-Ø610

N-224A20

Ø205

26

12

9177

23861

26.5

1400

286

15.677

ML3320

HJ24-1

HC24-1

Ø150-Ø610

N-232A11

Ø230

34

18

10197

24472

29.5

1200

530

43

ML3320

HJ24-1

HC24-1

Ø210-Ø800

N-232A15

Ø230

34

18

10197

24472

29.5

1200

515

43

ML3320

HJ24-1

HC24-1

Ø210-Ø800

N-232A20

Ø230

34

18

10197

24472

29.5

1200

485

42

ML3320

HJ24-1

HC24-1

Ø210-Ø800

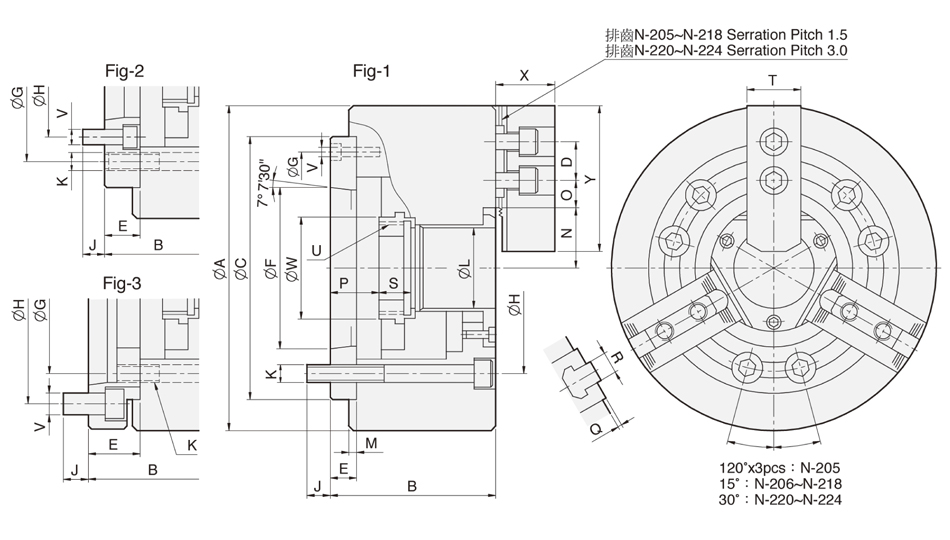

Kích thước

A

B

C
(H6)

D

H

J

K

L

M

N
cực đại.

O
cực đại.

O
min.

P
cực đại.

P
tối thiểu.

Q

R

S

T

U
tối đa.

W

X

Y

v

w

X

Y

Reference

N-205A4

135

71

110

14

15

63.513

96

82.55

15.5

3-M10

33

4

26.5

19.75

7.75

16

6

2

10

20

25

M40x1.5

3-M6

44.5

31

62

Fig-1

N-205A5

135

88

110

14

32

82.563

82.55

104.78

14

3-M10

33

4

26.5

19.75

7.75

33

23

2

10

20

25

M40x1.5

6-M10

44.5

31

62

Fig-3

N-206A4

169

96

140

20

20

63.513

104.78

82.55

16

6-M10

45

5

32

22.75

9.25

26

14

2

12

19

31

M55x2

6-M10

60

37

73

Fig-2

N-206A5

169

91

140

20

15

82.563

116

104.78

16

6-M10

45

5

32

22.75

9.25

26

14

2

12

19

31

M55x2

3-M6

60

37

73

Fig-1

N-206A6

169

111

140

20

35

106.375

104.78

133.35

16

6-M10

45

5

32

22.75

9.25

46

34

2

12

19

31

M55x2

6-M12

60

37

73

Fig-3

N-208A5

210

109

170

25

23

82.563

133.35

104.78

13

6-M12

52

5

38.7

29.75

11.75

37.5

21.5

2

14

20.5

35

M60x2

6-M10

66

38

95

Fig-2

N-208A6

210

103

170

25

17

106.375

150

133.35

18

6-M12

52

5

38.7

29.75

11.75

31.5

15.5

2

14

20.5

35

M60x2

3-M6

66

38

95

Fig-1

N-208A8

210

126

170

25

40

139.719

133.35

171.45

24

6-M12

52

5

38.7

29.75

11.75

54.5

38.5

2

14

20.5

35

M60x2

6-M16

66

38

95

Fig-3

N-210A6

254

120

220

30

25

106.375

171.45

133.35

18

6-M16

75

5

51.4

33.75

14.25

33.5

14.5

2

16

25

40

M85x2

6-M12

94

43

110

Fig-2

N-210A8

254

113

220

30

18

139.719

190

171.45

24

6-M16

75

5

51.4

33.75

14.25

26.5

7.5

2

16

25

40

M85x2

3-M8

94

43

110

Fig-1

N-210A11

254

145

220

30

50

196.869

171.45

235

28

6-M16

75

5

51.4

33.75

14.25

58.5

39.5

2

16

25

40

M85x2

6-M20

94

43

110

Fig-3

N-212A6

304

129

220

30

25

106.375

171.45

133.35

18

6-M16

91

6

61.3

45.75

15.75

33

10

2

21

28

50

M100x2

6-M12

108

51

130

Fig-2

N-212A8

304

122

220

30

18

139.719

190

171.45

25

6-M16

91

6

61.3

45.75

15.75

26

3

2

21

28

50

M100x2

3-M8

108

51

130

Fig-1

N-212A11

304

154

220

30

50

196.869

171.45

235

28

6-M16

91

6

61.3

45.75

15.75

58

35

2

21

28

50

M100x2

6-M20

108

51

130

Fig-3

N-215A8

381

160

300

43

33

139.719

235

171.45

24

6-M20

117.5

6

82

45.25

15.25

40

17

5

22

43

62

M130x2

6-M16

139

66

165

Fig-2

N-215A11

381

149

300

43

22

196.869

260

235

28

6-M20

117.5

6

82

45.25

15.25

29

6

5

22

43

62

M130x2

3-M10

139

66

165

Fig-1

N-215A15

381

184

300

43

57

285.775

235

330.2

24

6-M20

117.5

6

82

45.25

15.25

64

41

5

22

43

62

M130x2

6-M24

139

66

165

Fig-3

N-218A8

450

160

300

43

33

139.719

235

171.45

24

6-M20

117.5

6

82

79.75

15.25

40

17

5

22

43

62

M130x2

6-M16

139

66

165

Fig-2

N-218A11

450

149

300

43

22

196.869

260

235

28

6-M20

117.5

6

82

79.75

15.25

29

6

5

22

43

62

M130x2

3-M10

139

66

165

Fig-1

N-218A15

450

184

300

43

57

285.775

235

330.2

24

6-M20

117.5

6

82

79.75

15.25

64

41

5

22

43

62

M130x2

6-M24

139

66

165

Fig-3

N-220A11

510

169

380

60

41

196.869

330.2

235

30

6-M24

180

6

112.5

60.5

24.5

52

29

5

25

38

64

M190x3

6-M20

206

73

180

Fig-2

N-220A15

510

155

380

60

27

285.775

330.2

330.2

33

6-M24

180

6

112.5

60.5

24.5

38

15

5

25

38

64

M190x3

3-M12

206

73

180

Fig-1

N-224A11

610

186

520

60

45

196.869

463.6

235

28

6-M24

205

6

139.9

87.5

24.5

61

35

5

25

38

64

M215x3

6-M20

230

73

180

Fig-2

N-224A15

610

183

520

60

42

285.775

463.6

330.2

33

6-M24

205

6

139.9

87.5

24.5

58

32

5

25

38

64

M215x3

6-M24

230

73

180

Fig-2

N-224A20

610

166

520

60

25

412.775

463.6

463.6

35

6-M24

205

6

139.9

87.5

24.5

41

15

5

25

38

64

M215x3

3-M10

230

73

180

Fig-1

N-232A11

800

189

520

60

45

196.869

463.6

235

28

6-M24

230

6

162

153.5

24.5

61

27

5

25

38

64

M250x3

6-M20

262

73

180

Fig-2

N-232A15

800

186

520

60

42

285.775

469.6

330.2

32.5

6-M24

230

6

162

153.5

24.5

58

24

5

25

38

64

M250x3

6-M24

262

73

180

Fig-2
